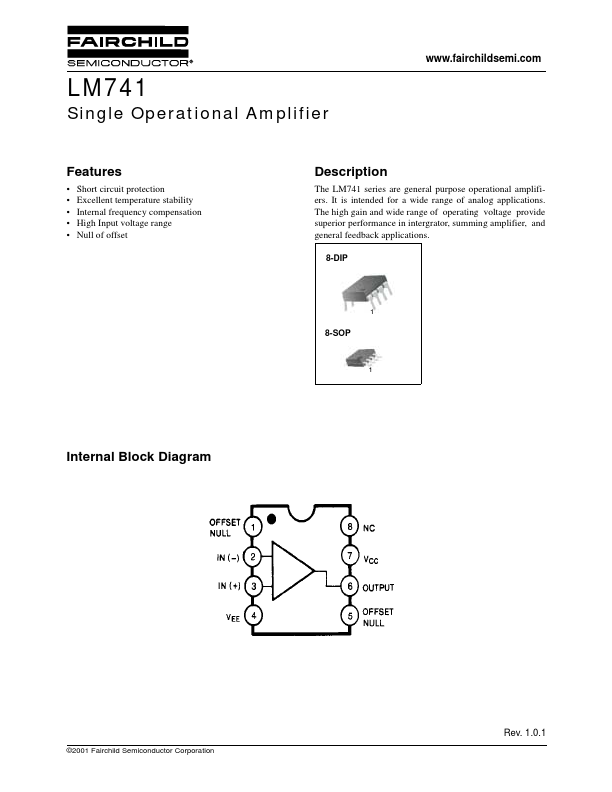

LM741
Features
- Short circuit protection
- Excellent temperature stability
- Internal frequency pensation
- High Input voltage range
- Null of offset
Description
The LM741 series are general purpose operational amplifiers. It is intended for a wide range of analog applications. The high gain and wide range of operating voltage provide superior performance in intergrator, summing amplifier, and general feedback applications.
8-DIP
1 8-SOP
Internal Block Diagram
©2001 Fairchild Semiconductor Corporation
Rev. 1.0.1

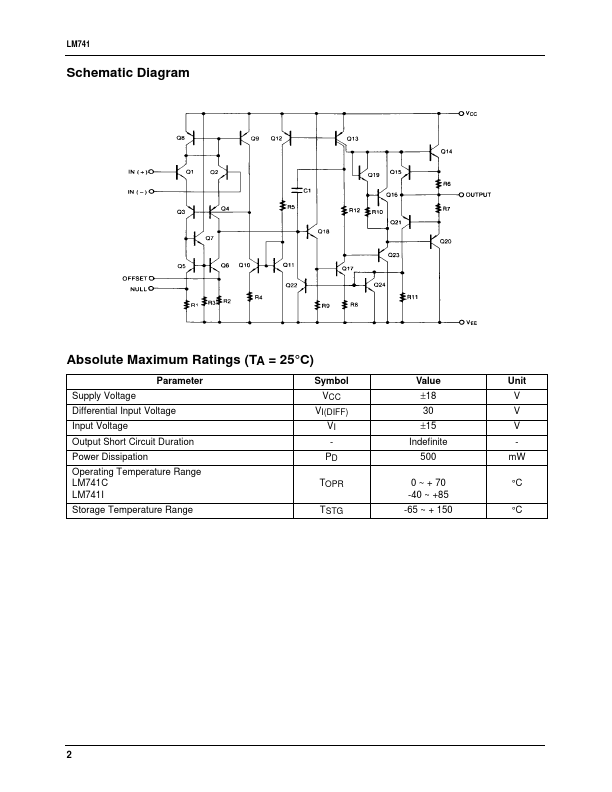

Schematic Diagram
Absolute Maximum Ratings (TA = 25°C)
Parameter Supply Voltage Differential Input Voltage Input Voltage Output Short Circuit Duration Power Dissipation Operating Temperature Range LM741C LM741I Storage Temperature Range
Symbol
Value
Unit
±18
VI(DIFF)
±15
- Indefinite
- PD
500 m W
TOPR
0 ~ + 70
°C
-40 ~ +85
TSTG
-65 ~ + 150
°C

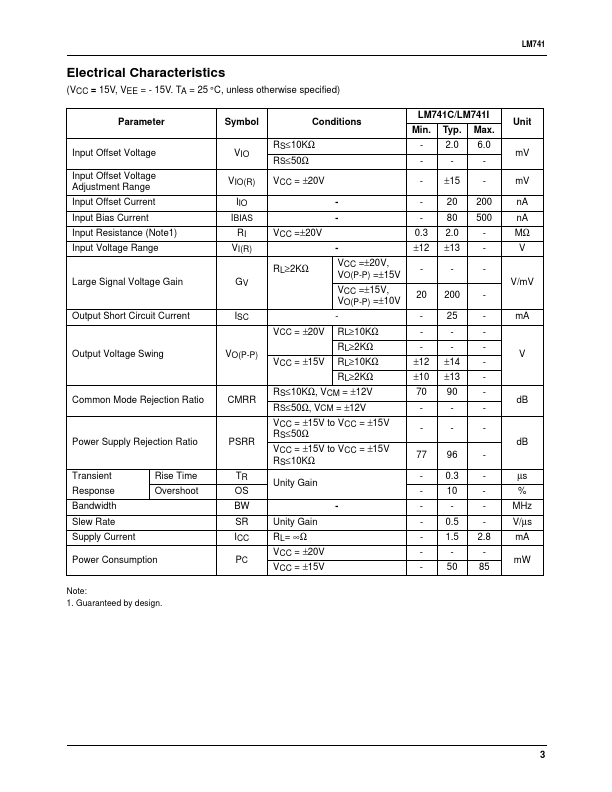

Electrical Characteristics
(VCC = 15V, VEE...
