LVT162245

Low Voltage 16-Bit Transceiver with 3-STATE Outputs and 25 Series Resistors in A Port Outputs

LVT162245 Features

* s Input and output interface capability to systems at 5V VCC s Bushold data inputs eliminate the need for external pullup resistors to hold unused inputs (74LVTH162245), also available without bushold feature (74LVT162245). s Live insertion/extraction permitted s Power Up/Down high impedance provide

LVT162245 General Description

The LVT162245 and LVTH162245 contains sixteen noninverting bidirectional buffers with 3-STATE outputs and is intended for bus oriented applications. The device is byte controlled. Each byte has separate control inputs which can be shorted together for full 16-bit operation. The T/R inputs determine .

LVT162245 Datasheet (78.81 KB)

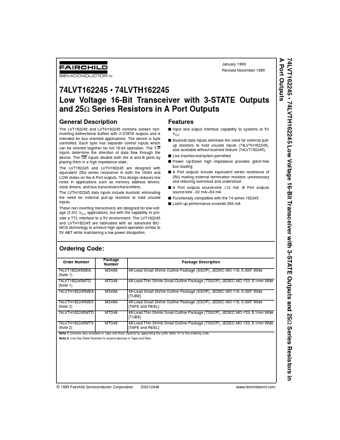

Preview of LVT162245 PDF

Datasheet Details

Part number:

LVT162245

Manufacturer:

Fairchild Semiconductor

File Size:

78.81 KB

Description:

Low voltage 16-bit transceiver with 3-state outputs and 25 series resistors in a port outputs.
74LVT162245

* 74LVTH162245 Low Voltage 16-Bit Transceiver with 3-STATE Outputs and 25Ω Series Resistors in A Port Outputs January 1999 Revise.
