M74C923

MM74C923

M74C923 Features

* s 50 kΩ maximum switch on resistance s On or off chip clock s On-chip row pull-up devices s 2 key roll-over s Keybounce elimination with single capacitor s Last key register at outputs s 3-STATE output LPTTL compatible s Wide supply range: 3V to 15V s Low power consumption Ordering Code: Order Numb

M74C923 General Description

www.DataSheet4U.com The MM74C922 and MM74C923 CMOS key encoders provide all the necessary logic to fully encode an array of SPST switches. The keyboard scan can be implemented by either an external clock or external capacitor. These encoders also have on-chip pull-up devices which permit switches wi.

M74C923 Datasheet (153.29 KB)

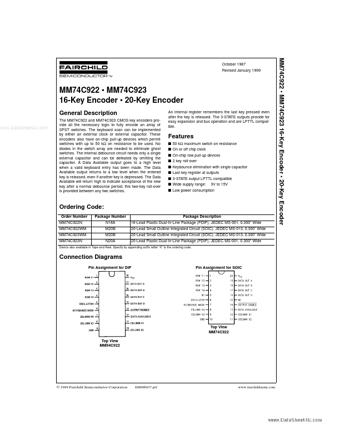

Preview of M74C923 PDF

Datasheet Details

Part number:

M74C923

Manufacturer:

Fairchild Semiconductor

File Size:

153.29 KB

Description:

mm74c923.
MM74C922

* MM74C923 16-Key Encoder

* 20-Key Encoder October 1987 Revised January 1999 MM74C922

* MM74C923 16-Key Encoder
