MC78L12A

3-Terminal 0.1A Positive Voltage Regulator

MC78L12A Features

* Maximum Output Current of 100 mA

* Output Voltage of 5 V, 6 V, 8 V, 12 V, and 15 V

* Thermal Overload Protection

* Short-Circuit Current Limiting

* Output Voltage Offered in ±5% Tolerance Description The MC78LXXA / LM78LXXA series of fixed-voltage monolithi

MC78L12A General Description

The MC78LXXA / LM78LXXA series of fixed-voltage monolithic integrated circuit voltage regulators are suitable for applications that required supply current up to 100 mA. TO-92 SOT-89 GND 1 23 123 1. Output 2. GND 3. Input 8-SOIC 8 1 1. Output 2. GND 3. GND 4. NC 5. NC 6. GND 7. GND 8. Inpu.

MC78L12A Datasheet (265.69 KB)

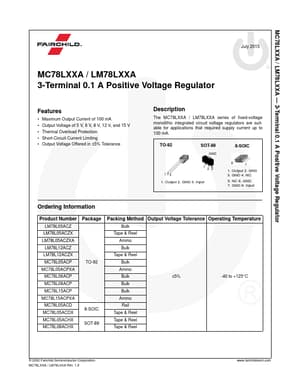

Preview of MC78L12A PDF

Datasheet Details

Part number:

MC78L12A

Manufacturer:

Fairchild Semiconductor

File Size:

265.69 KB

Description:

3-terminal 0.1a positive voltage regulator.
MC78LXXA / LM78LXXA

* 3-Terminal 0.1 A Positive Voltage Regulator July 2015 MC78LXXA / LM78LXXA 3-Terminal 0.1 A Positive Voltage Regulator .
