MM3Z75VB, MM3Z2V4B - Zener Diodes

Fairchild Semiconductor

📥 Download Datasheet

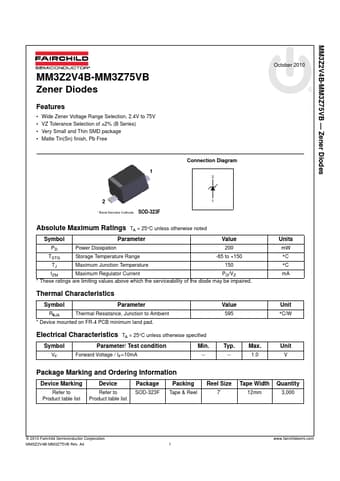

MM3Z75VB Datasheet Preview — This datasheet PDF includes multiple part numbers: MM3Z75VB, MM3Z2V4B. Please refer to the document for exact specifications by model.

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	MM3Z75VB, MM3Z2V4B
Manufacturer	Fairchild ↗ Semiconductor
File Size	324.07 KB
Description	Zener Diodes
Datasheet	MM3Z2V4B-FairchildSemiconductor.pdf
Note	This datasheet PDF includes multiple part numbers: MM3Z75VB, MM3Z2V4B. Please refer to the document for exact specifications by model.

MM3Z75VB Product details

Features

Wide Zener Voltage Range Selection, 2.4V to 75V.
VZ Tolerance Selection of ±2% (B Series).
Very Small and Thin SMD package.
Matte Tin(Sn) finish, Pb Free 1 Connection Diagram 2 October 2010 2.
Band Denotes Cathode SOD-323F 1 Absolute Maximum Ratings TA = 25°C unless otherwise noted Symbol Parameter Value PD Power Dissipation 200 TSTG Storage Temperature Range -65 to +150 TJ Maximum Junction Temperature 150 IZM Maximum Regulator Current P.
