MOC3020M

6-Pin DIP Random-Phase Triac Driver Output Optocoupler

MOC3020M Features

* Excellent IFT Stability

* IR Emitting Diode Has Low Degradation

* Peak Blocking Voltage

* 250 V, MOC301XM

* 400 V, MOC302XM

* Safety and Regulatory Approvals

* UL1577, 4,170 VACRMS for 1 Minute

* DIN EN/IEC60747-5-5 Applications

MOC3020M General Description

The MOC301XM and MOC302XM series are optically isolated triac driver devices. These devices contain a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a triac. They are designed for interfacing between electronic controls and power triacs to control r.

MOC3020M Datasheet (404.73 KB)

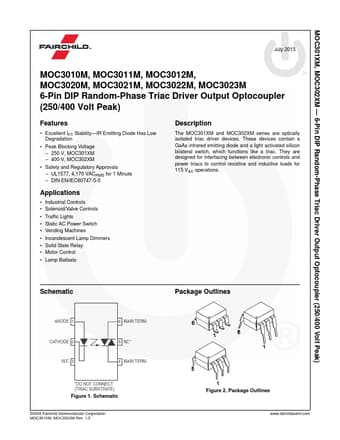

Preview of MOC3020M PDF

Datasheet Details

Part number:

MOC3020M

Manufacturer:

Fairchild Semiconductor

File Size:

404.73 KB

Description:

6-pin dip random-phase triac driver output optocoupler.
MOC301XM, MOC302XM

* 6-Pin DIP Random-Phase Triac Driver Output Optocoupler (250/400 Volt Peak) July 2015 MOC3010M, MOC3011M, MOC3012M, MOC3.
