MV53123, MV52123 Datasheet - Fairchild Semiconductor

MV53123 (MV5x123) SOLID STATE LED LAMP RECTANGULAR 2 X 5 mm LED LAMPS

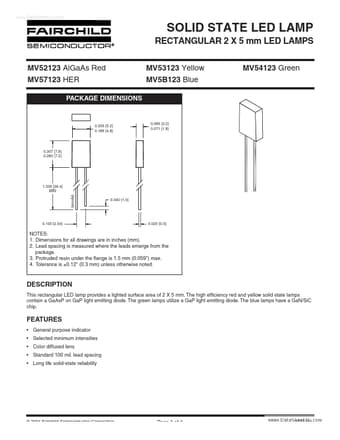

www.DataSheet4U.com SOLID STATE LED LAMP RECTANGULAR 2 X 5 mm LED LAMPS MV52123 AlGaAs Red MV57123 HER PACKAGE DIMENSIONS MV53123 Yellow MV5B123 Blue MV54123 Green 0.205 (5.2) 0.189 (4.8) 0.085 (2.2) 0.071 (1.8) 0.307 (7.8) 0.283 (7.2) 1.039 (26.4) MIN (anode) 0.040 (1.0) 0.100 (2.54) 0.020 (0.5) NOTES: 1. Dimensions for all drawings are in inches (mm). 2. Lead spacing is measured where the leads emerge from the package. 3. Protruded resin under the flange is 1.5 mm (0.059") max. 4. Tol.

MV53123 Features

* General purpose indicator

* Selected minimum intensities

* Color diffused lens

* Standard 100 mil. lead spacing

* Long life solid-state reliability © 2004 Fairchild Semiconductor Corporation Page 1 of 4 3/24/04 www.DataSheet4U.com SOLID STATE LED LAMP R

MV52123_FairchildSemiconductor.pdf

This datasheet PDF includes multiple part numbers: MV53123, MV52123. Please refer to the document for exact specifications by model.
MV53123 Datasheet Preview Page 2 MV53123 Datasheet Preview Page 3

Datasheet Details

Part number:

MV53123, MV52123

Manufacturer:

Fairchild Semiconductor

File Size:

464.31 KB

Description:

(mv5x123) solid state led lamp rectangular 2 x 5 mm led lamps.

Note:

This datasheet PDF includes multiple part numbers: MV53123, MV52123.
Please refer to the document for exact specifications by model.
