MV6300A, MV6400A, (MV6x00A) SUBMINIATURE T-3/4 LED DIFFUSED and CLEAR LAMPS

SUBMINIATURE T-3/4 LED DIFFUSED AND CLEAR LAMPS HIGH EFF.RED YELLOW GREEN AIGaAs RED HLMP-6305A HLMP-6405A HLMP-6505A HLMP-Q105A HLMP-Q101A Water Cle.
These T-3/4 subminiature LED lamps feature a squarebase, transfer molded package for surface mount applications.

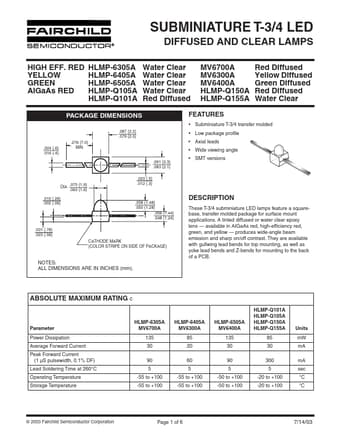

datasheet Preview Page 1 from Datasheet4u.com

MV6400A_FairchildSemiconductor.pdf

MV6300A Datasheet Preview — This datasheet PDF includes multiple part numbers: MV6300A, MV6400A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

MV6300A, MV6400A

Manufacturer:

Fairchild Semiconductor

File Size:

519.30 KB

Description:

(MV6x00A) SUBMINIATURE T-3/4 LED DIFFUSED and CLEAR LAMPS

Note:

This datasheet PDF includes multiple part numbers: MV6300A, MV6400A.
Please refer to the document for exact specifications by model.

Features

* Subminiature T-3/4 transfer molded
* Low package proﬁle
* Axial leads
* Wide viewing angle .091 (2.3) .083 (2.1)
* SMT versions DIA .010 (.26) .002 (.06) .075 (1.9) .063 (1.6) .020 (.5) .012 (.3) .058 (1.48) .050 (1.28) .056 (1.44) .048 (1.24) DESCRIPT

Applications

* A tinted diffused or water clear epoxy lens
* available in AIGaAs red, high-efﬁciency red, green, and yellow
* produces wide-angle beam emission and sharp on/off contrast. They are available with gullwing lead bends for top mounting, as well as yoke lead bends and Z-bends for mounti
