P6KE56A, P6KE6V8A, 600W Transient Voltage Suppressors

P6KE6V8(C)A - P6KE440(C)A * 600 W Transient Voltage Suppressors June 2013 P6KE6V8(C)A - P6KE440(C)A 600 W Transient Voltage Suppressors Fea.

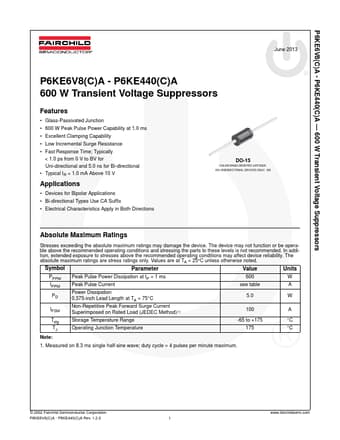

datasheet Preview Page 1 from Datasheet4u.com

P6KE6V8A-FairchildSemiconductor.pdf

P6KE56A Datasheet Preview — This datasheet PDF includes multiple part numbers: P6KE56A, P6KE6V8A. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

P6KE56A, P6KE6V8A

Manufacturer:

Fairchild Semiconductor

File Size:

116.34 KB

Description:

600W Transient Voltage Suppressors

Note:

This datasheet PDF includes multiple part numbers: P6KE56A, P6KE6V8A.
Please refer to the document for exact specifications by model.

Features

* Glass-Passivated Junction
* 600 W Peak Pulse Power Capability at 1.0 ms
* Excellent Clamping Capability
* Low Incremental Surge Resistance
* Fast Response Time; Typically < 1.0 ps from 0 V to BV for Uni-directional and 5.0 ns for Bi-directional
* Typ

Applications

* Devices for Bipolar Applications
* Bi-directional Types Use CA Suffix
* Electrical Characteristics Apply in Both Directions DO-15 COLOR BAND DENOTES CATHODE ON UNIDIRECTIONAL DEVICES ONLY. NO Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may da
