PN2222 Datasheet - Fairchild Semiconductor

PN2222 Transistor

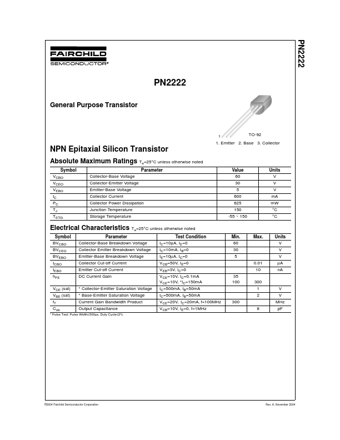

PN2222 PN2222 General Purpose Transistor 1 TO-92 1. Emitter 2. Base 3. Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Value 60 30 5 600 625 150 -55 ~ 150 Units V V V mA mW °C °C Electrical Characteristics Ta=25°C unless otherwise noted Sym.

PN2222 Datasheet (25.57 KB)

Preview of PN2222 PDF
PN2222 Datasheet Preview Page 2 PN2222 Datasheet Preview Page 3

Datasheet Details

Part number:

PN2222

Manufacturer:

Fairchild Semiconductor

File Size:

25.57 KB

Description:

Transistor.
