QED221 PLASTIC INFRARED LIGHT EMITTING DIODE

QED221 Description

PLASTIC INFRARED LIGHT EMITTING DIODE QED221 PACKAGE DIMENSIONS 0.195 (4.95) QED222 QED223 REFERENCE SURFACE 0.305 (7.75) 0.040 (1.02) NOM 0.800 .
The QED22X is an 880nm AlGaAs LED encapsulated in clear, purple tinted, plastic T-1 3/4 package. != 880 nm. Chip material.

QED221 Features

* != 880 nm
* Chip material = AlGaAs
* Package type: T-1 3/4 (5mm lens diameter)
* Matched Photosensor: QSD122/123/124
* Medium Wide Emission Angle, 40°
* High Output Power
* Package material and color: Clear, purple tinted, plastic  2001 Fai

📥 Download Datasheet

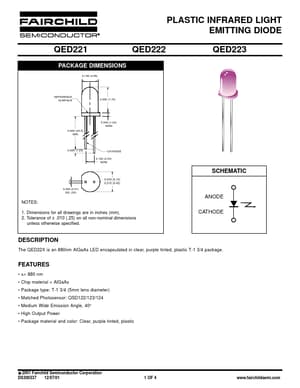

Preview of QED221 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QED221
Manufacturer
Fairchild Semiconductor
File Size
103.41 KB
Datasheet
QED221_FairchildSemiconductor.pdf
Description
PLASTIC INFRARED LIGHT EMITTING DIODE
