QEE122 - PLASTIC INFRARED LIGHT EMITTING DIODE

Description

The QEE12X is a 880 nm AlGaAs LED encapsulated in a medium wide angle, plastic sidelooker package.

Features

  • λ= 880 nm Package Type = Sidelooker Chip Material = AlGaAs Matched Photosensor: QSE113 Medium Wide Emission Angle, 50° Package Material: Clear Epoxy High Output Power Orange stripe on the top side © 2002 Fairchild Semiconductor Corporation Page 1 of 4 4/30/02.

📥 Download Datasheet

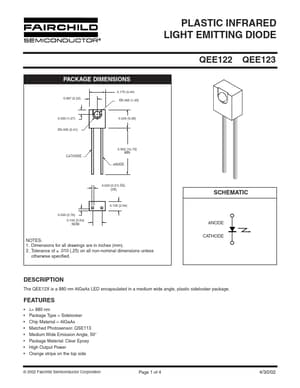

Datasheet preview – QEE122

Datasheet Details

Part number QEE122
Manufacturer Fairchild Semiconductor
File Size 332.38 KB
Description PLASTIC INFRARED LIGHT EMITTING DIODE
Datasheet download datasheet QEE122 Datasheet
Additional preview pages of the QEE122 datasheet.

📁 Similar Datasheet

  • QEE122 - AIGAAS INFRARED EMITTING DIODE (QT Optoelectronics)
  • QEE123 - AIGAAS INFRARED EMITTING DIODE (QT Optoelectronics)
  • QEE113 - GAAS INFRARED EMITTING DIODE (QT Optoelectronics)
Other Datasheets by Fairchild Semiconductor
  • QEE123 - PLASTIC INFRARED LIGHT EMITTING DIODE
  • QEE113 - PLASTIC INFRARED LIGHT EMITTING DIODE
  • QEE213 - PLASTIC INFRARED LIGHT EMITTING DIODE

Full PDF Text Transcription

Click to expand full text
PLASTIC INFRARED LIGHT EMITTING DIODE QEE122 PACKAGE DIMENSIONS 0.175 (4.44) 0.087 (2.22) Ø0.065 (1.65) QEE123 0.050 (1.27) 0.200 (5.08) Ø0.095 (2.41) 0.500 (12.70) MIN CATHODE ANODE 0.020 (0.51) SQ. (2X) SCHEMATIC 0.100 (2.54) 0.030 (0.76) 0.100 (2.54) NOM ANODE CATHODE NOTES: 1. Dimensions for all drawings are in inches (mm). 2. Tolerance of ± .010 (.25) on all non-nominal dimensions unless otherwise specified. DESCRIPTION The QEE12X is a 880 nm AlGaAs LED encapsulated in a medium wide angle, plastic sidelooker package.
