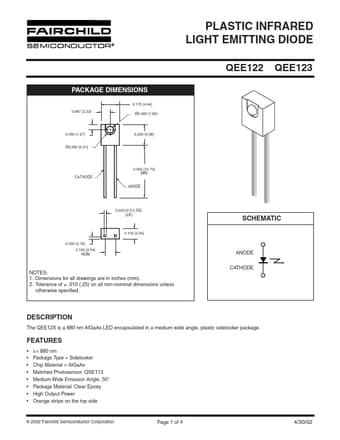

PLASTIC INFRARED LIGHT EMITTING DIODE QEE122 PACKAGE DIMENSIONS 0.175 (4.44) 0.087 (2.22) Ø0.065 (1.65) 0.050 (1.27) 0.200 (5.08) Ø0.095 (2.41) 0.500 (12.70) MIN CATHODE ANODE 0.020 (0.51) SQ. (2X) SCHEMATIC 0.100 (2.54) 0.030 (0.76) 0.100 (2.54) NOM ANODE CATHODE NOTES: 1. Dimensions for all drawings are in inches (mm). 2. Tolerance of ± .010 (.25) on all non-nominal dimensions unless otherwise specified. DESCRIPTION The QEE12X is a 880 nm AlGaAs LED encapsulated in a medium wide angle, plastic sidelooker package. Features - - - - - - - - λ= 880 nm Package Type = Sidelooker Chip Material = AlGaAs Matched Photosensor: QSE113 Medium Wide Emission Angle, 50° Package...
