QRD1113, REFLECTIVE OBJECT SENSOR

QRD1113/1114 REFLECTIVE OBJECT SENSOR PACKAGE DIMENSIONS 0.083 (2.11) OPTICAL CENTERLINE 0.240 (6.10) 0.120 (3.05) PIN 1 INDICATOR .

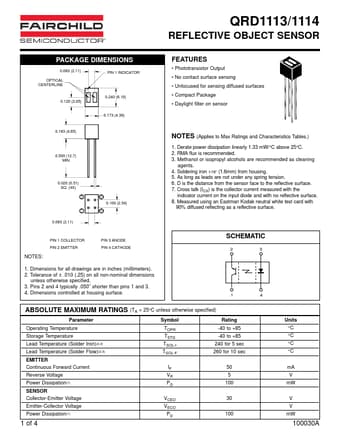

datasheet Preview Page 1 from Datasheet4u.com

QRD1113_FairchildSemiconductor.pdf

QRD1113 Datasheet Preview — Preview of QRD1113 PDF

Datasheet Details

Part number:

QRD1113

Manufacturer:

Fairchild Semiconductor

File Size:

164.72 KB

Description:

REFLECTIVE OBJECT SENSOR

Features

* Phototransistor Output
* No contact surface sensing
* Unfocused for sensing diffused surfaces
* Compact Package
* Daylight filter on sensor 0.173 (4.39) 0.183 (4.65) NOTES 0.500 (12.7) MIN (Applies to Max Ratings and Characteristics Tables. ) 0.020 (0.51
