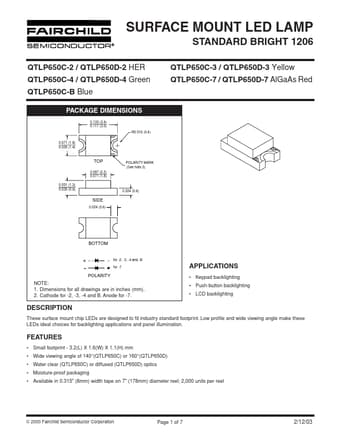

QTLP650C Datasheet, 1206, Fairchild Semiconductor

QTLP650C Features

• 1206
• Small footprint - 3.2(L) X 1.6(W) X 1.1(H) mm
• Wide viewing angle of 140°(QTLP650C) or 160°(QTLP650D)
• Water clear (QTLP650C) or diffused (QTLP650D) optics <

PDF File Details

Part number:

QTLP650C

Manufacturer:

Fairchild Semiconductor

File Size:

401.60kb

Download:

📄 Datasheet

Description:

Surface mount led lamp standard bright 1206. These surface mount chip LEDs are designed to fit industry standard footprint. Low profile and wide viewing angle make these LEDs ideal

QTLP650C Application

• Applications
• Keypad backlighting
• Push-button backlighting
• LCD backlighting NOTE: 1. Dimensions for all drawings are i
