QTLP651C-E SURFACE MOUNT LED LAMP

SURFACE MOUNT LED LAMP SUPER BRIGHT 1206 (Inner Lens) QTLP651C-R Red QTLP651C-Y Yellow QTLP651C-IB Blue QTLP651C-E Orange QTLP651C-AG Yellow-Green QTLP651C-O Yellow-Orange QTLP651C-IG True Green PACKAGE DIMENSIONS 0.126 (3.2) 0.110 (2.8) 0.079 (2.0) 0.070 (1.8) 0.067 (1.7) 0.051 (1.3) TOP Ø0.020 (0.5) CATHODE 10° 0.043 (1.1) Ø0.035 (0.9) 0.035 (0.9) SIDE 0.024 (0.6) 0.063 (1.6) 0.051 (1.3) BOTTOM NOTE: +- POLARITY Dimensions for all drawings are in inches (mm). APPLICATIONS

QTLP651C-E Features

* a recessed, inner lens that focuses the light output, offering greater luminous intensity for direct viewing. FEATURES

* Small footprint - 3.0(L) X 1.5(W) X 1.5(H) mm

* AllnGaP technology for -R, -E, -O, -Y and -AG

* InGaN/SiC technology for -IG and -IB

* Narrow view

QTLP651C-E Datasheet (185.80 KB)

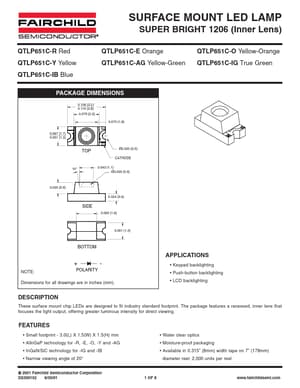

QTLP651C-E Datasheet Preview — Preview of QTLP651C-E PDF

Datasheet Details

Part number:

QTLP651C-E

Manufacturer:

Fairchild Semiconductor

File Size:

185.80 KB

Description:

Surface mount led lamp.
