RC4152 Datasheet - Fairchild Semiconductor

Voltage-to-Frequency Converters

RC4152 Features

* Single supply operation Pulse output DTL/TTL/CMOS compatible Programmable scale factor (K) High noise rejection Inherent monotonicity Easily transmittable output Simple full scale trim Singl

RC4152 General Description

The RC4152 is a monolithic circuit containing all of the active components needed to build a complete voltage-tofrequency converter. Circuits that convert a DC voltage to a pulse train can be built by adding a few resistors and capacitors to the internal comparator, one-shot, voltage reference, and .

RC4152 Datasheet (75.41 KB)

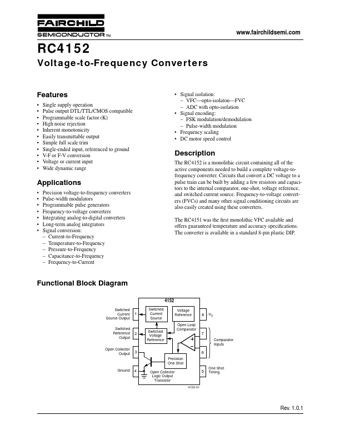

RC4152 Datasheet Preview — Preview of RC4152 PDF

Datasheet Details

Part number:

RC4152

Manufacturer:

Fairchild Semiconductor

File Size:

75.41 KB

Description:

Voltage-to-frequency converters.
