RMWB12001

12 GHZ Buffer Amp

RMWB12001 Features

* 4 mil Substrate Small-signal Gain 25dB (typ.) 3dB compressed Pout 21dBm (typ.) Voltage Detector Included to Monitor Pout Chip size 2.2mm x 1.7mm Device Absolute Ratings Symbol Vd Vg Vdg ID PIN TC TSTG RJC Parameter Positive DC Voltage (+4V Typical)

RMWB12001 General Description

The RMWB12001 is a 3-stage GaAs MMIC amplifier designed as an 8.5 to 12 GHz Buffer Amplifier for use in point to point and point to multi-point radios, and various communications applications. In conjunction with other Fairchild RF amplifiers, multipliers and mixers it forms part of a complete 23 an.

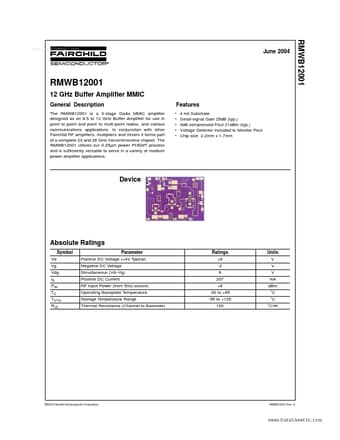

RMWB12001 Datasheet (233.26 KB)

Preview of RMWB12001 PDF

Datasheet Details

Part number:

RMWB12001

Manufacturer:

Fairchild Semiconductor

File Size:

233.26 KB

Description:

12 ghz buffer amp.
