SG6518 - LCD Power Supply Supervisor

Fairchild Semiconductor

The SG6518 by Fairchild Semiconductor is a LCD Power Supply Supervisor. Below is the official datasheet preview.

📥 Download Datasheet

SG6518 LCD Power Supply Supervisor by Fairchild Semiconductor - Datasheet Preview — Official preview page of the **SG6518** LCD Power Supply Supervisor datasheet (Fairchild Semiconductor).

Datasheet Details

Part number	SG6518
Manufacturer	Fairchild Semiconductor
File Size	613.04 KB
Description	LCD Power Supply Supervisor
Datasheet	SG6518_FairchildSemiconductor.pdf

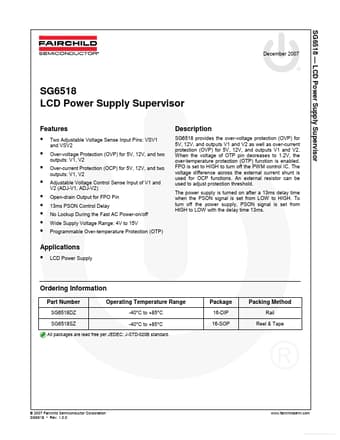

Additional preview pages of the SG6518 datasheet.

SG6518 Product details

Description

SG6518 provides the over-voltage protection (OVP) for 5V, 12V, and outputs V1 and V2 as well as over-current protection (OVP) for 5V, 12V, and outputs V1 and V2.

Features

Two Adjustable Voltage Sense Input Pins: VSV1 and VSV2 Over-voltage Protection (OVP) for 5V, 12V, and two outputs: V1, V2 Over-current Protection (OCP) for 5V, 12V, and two outputs: V1, V2 Adjustable Voltage Control Sense Input of V1 and V2 (ADJ-V1, ADJ-V2) Open-drain Output for FPO Pin 13ms PSON Control Delay No Lockup During the Fast AC Power-on/off Wide Supply Voltage Range: 4V to 15V Programmable Over-temperature Protection (OTP) Descrip.
