SG6848DZ1 - Green-Mode PWM Controller

This page provides the datasheet information for the SG6848DZ1, a member of the SG6848TZ1 Green-Mode PWM Controller family.

Description

This highly integrated PWM controller provides several enhancements to meet the low standby-power needs of low-power SMPS.

To minimize standby power consumption, the proprietary Green Mode provides offtime modulation to continuously decrease PWM frequency under light-load conditions.

Features

  • Green-Mode PWM Controller.
  • Low Startup Current: 5 μA.
  • Low Operating Current: 3 mA.
  • Programmable PWM Frequency.
  • Peak-Current-Mode Operation.
  • Leading-Edge Blanking.
  • Built-in Synchronized Slope Compensation.
  • Cycle-by-Cycle Current Limiting.
  • Constant Output Power Limit.
  • Gate Output Voltage Clamped at 15 V.
  • Small SSOT-6 Package.

📥 Download Datasheet

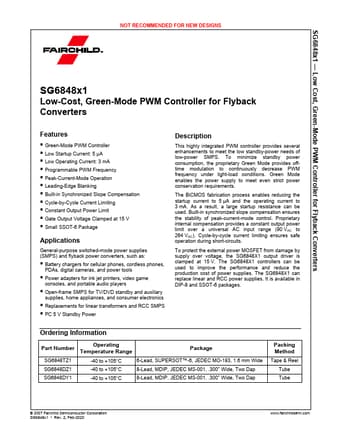

Datasheet preview – SG6848DZ1

Datasheet Details

Part number SG6848DZ1
Manufacturer Fairchild Semiconductor
File Size 675.62 KB
Description Green-Mode PWM Controller
Datasheet download datasheet SG6848DZ1 Datasheet
Additional preview pages of the SG6848DZ1 datasheet.

📁 Similar Datasheet

  • SG6848 - Low Cost Green-Mode PWM Controller (System General)
  • SG6840 - Highly Integrated Green-Mode PWM Controller (ETC)
  • SG6841 - High-integrated Green-mode PWM Controller (System General)
  • SG6842 - Highly Integrated Green-Mode PWM Controller (System General)
  • SG6842J - Highly-Integrated Green-Mode PWM Controller (System General)
  • SG6849 - Low-Power Green-Mode PWM Flyback Power Controller (System General)
  • SG600Q - Gas Discharge Tubes (Littelfuse)
  • SG6100 - DIODE ARRAY CIRCUITS (LINFINITY)
  • SG6101 - DIODE ARRAY CIRCUITS (LINFINITY)
  • SG6105 - Power Supply Supervisor + Regulator + PWM (ETC)
Other Datasheets by Fairchild Semiconductor
  • SG6848DY1 - Green-Mode PWM Controller
  • SG6848TZ1 - Green-Mode PWM Controller
  • SG6846 - Highly Integrated Green-Mode PWM Controller
  • SG6846A - Highly Integrated Green-Mode PWM Controller
  • SG6846B - Highly Integrated Green-Mode PWM Controller
  • SG6846C - Highly Integrated Green-Mode PWM Controller
  • SG6846G - Highly Integrated Green-Mode PWM Controller
  • SG6849 - Green-Mode PWM Flyback Power Controller

Full PDF Text Transcription

Click to expand full text
NOT RECOMMENDED FOR NEW DESIGNS SG6848x1 — Low Cost, Green-Mode PWM Controller for Flyback Converters SG6848x1 Low-Cost, Green-Mode PWM Controller for Flyback Converters Features  Green-Mode PWM Controller  Low Startup Current: 5 μA  Low Operating Current: 3 mA  Programmable PWM Frequency  Peak-Current-Mode Operation  Leading-Edge Blanking  Built-in Synchronized Slope Compensation  Cycle-by-Cycle Current Limiting  Constant Output Power Limit  Gate Output Voltage Clamped at 15 V  Small SSOT-6 Package Applications General-purpose switched-mode power supplies (SMPS) and flyback power converters, such as:  Battery chargers for cellular phones, cordless phones, PDAs, digital cameras, and power tools  Power adapters for ink jet printers, video game consoles, and portable audio pl
