TIL111-M, GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS

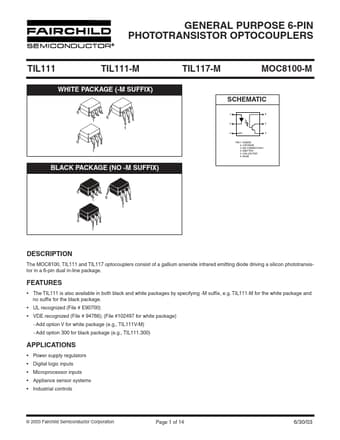

GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS TIL111 TIL111-M WHITE PACKAGE (-M SUFFIX) SCHEMATIC 6 1 6 2 5 1 6 TIL117-M MOC8100-M 1 3 NC 4 6.
The MOC8100, TIL111 and TIL117 optocouplers consist of a gallium arsenide infrared emitting diode driving a silicon phototransistor in a 6-pin dual in.

datasheet Preview Page 1 from Datasheet4u.com

TIL111-M_FairchildSemiconductor.pdf

TIL111-M Datasheet Preview — Preview of TIL111-M PDF

Datasheet Details

Part number:

TIL111-M

Manufacturer:

Fairchild Semiconductor

File Size:

619.98 KB

Description:

GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS

Features

* The TIL111 is also available in both black and white packages by specifying -M sufﬁx, e. g. TIL111-M for the white package and no sufﬁx for the black package.
* UL recognized (File # E90700)
* VDE recognized (File # 94766); (File #102497 for white package) - Add option V for

Applications

* Power supply regulators
* Digital logic inputs
* Microprocessor inputs
* Appliance sensor systems
* Industrial controls © 2003 Fairchild Semiconductor Corporation Page 1 of 14 6/30/03 GENERAL PURPOSE 6-PIN PHOTOTRANSISTOR OPTOCOUPLERS TIL111 TIL111-M TIL
