TIP42B PNP Epitaxial Silicon Transistor

TIP42B Description

TIP42 SERIES(TIP42/42A/42B/42C) TIP42 SERIES(TIP42/42A/42B/42C) Medium Power Linear Switching Applications * Complement to TIP41/41A/41B/41C .

TIP42B Applications

* Complement to TIP41/41A/41B/41C 1 TO-220 2.Collector 3.Emitter 1.Base PNP Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO Collector-Base Voltage Parameter : TIP42 : TIP42A : TIP42B : TIP42C Value - 40 - 60 - 80 - 100 - 40 - 60 - 80 - 100

📥 Download Datasheet

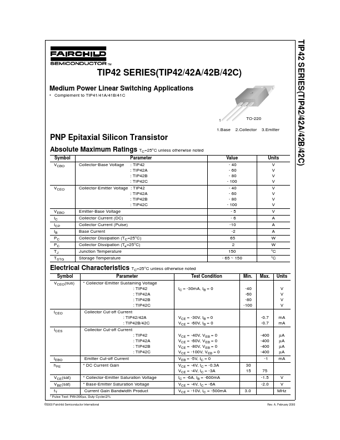

Preview of TIP42B PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
TIP42B
Manufacturer
Fairchild Semiconductor
File Size
36.73 KB
Datasheet
TIP42B_FairchildSemiconductor.pdf
Description
PNP Epitaxial Silicon Transistor
