TL431 Datasheet, regulator equivalent, Fairchild Semiconductor

TL431 Features

• Regulator
• Programmable Output Voltage to 36 Volts
• Low Dynamic Output Impedance 0.2Ω Typical
• Sink Current Capability of 1.0 to 100mA
• Equivalent Full-Range T

PDF File Details

Part number:

TL431

Manufacturer:

Fairchild Semiconductor

File Size:

94.18kb

Download:

📄 Datasheet

Description:

Programmable shunt regulator. The TL431/TL431A are three-terminal adjustable regulator series with a guaranteed thermal stability over applicable temperature range

TL431 Application

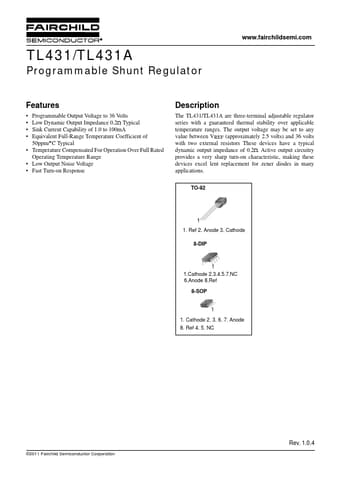

• Applications TO-92 1 1. Ref 2. Anode 3. Cathode 8-DIP 1 1.Cathode 2.3.4.5.7.NC 6.Anode 8.Ref 8-SOP 1 1. Cathode 2. 3. 6. 7. Anode 8. Ref 4. 5. NC
