74F240 Datasheet, drivers equivalent, Fairchild

PDF File Details

Part number: 74F240

Manufacturer: Fairchild

File Size: 211.76KB

Download: 📄 Datasheet

Description: Octal Buffers/Line Drivers

Datasheet Preview: 74F240 📥 Download PDF (211.76KB)

74F240 Features and benefits


* 3-STATE outputs drive bus lines or buffer memory address registers
* Outputs sink 64mA (48mA mil)
* 12mA source current
* Input clamp diodes limit high-.

74F240 Description

The 74F240 and 74F244 are octal buffers and line drivers designed to be employed as memory and address drivers, clock drivers and bus-oriented transmitters/ receivers which provide improved PC and board density. Ordering Information Order Code 74F2.

Image gallery

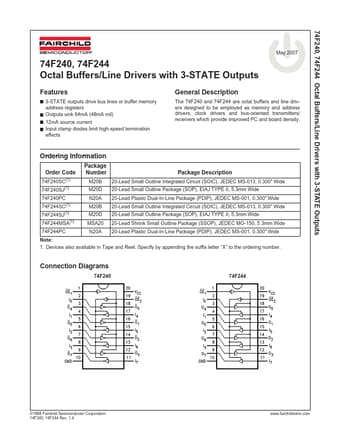

Page 2 of 74F240 Page 3 of 74F240
