BAW56 - High Conductance Ultra Fast Diode

Fairchild

Datasheet Details

Part number	BAW56
Manufacturer	Fairchild
File Size	27.08 KB
Description	High Conductance Ultra Fast Diode
Datasheet	BAW56 Datasheet

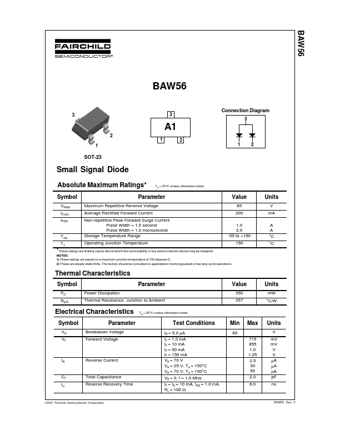

Additional preview pages of the BAW56 datasheet.

📁 Similar Datasheet

BAW56 - Three Terminals SMD Switching Diode (TAITRON)
BAW56 - Diodes (Multicomp)
BAW56 - Surface mount switching diode (GME)
BAW56 - SURFACE MOUNT FAST SWITCHING DIODE (WON-TOP)
BAW56 - SURFACE MOUNT FAST SWITCHING DIODE (LITE-ON)
BAW56 - Dual Surface Mount Switching Diode (Vishay Telefunken)
BAW56 - DUAL SURFACE MOUNT SWITCHING DIODE (Diodes Incorporated)
BAW56 - 350mW 75Volt Dual Switching Diode (Micro Commercial Components)
BAW56 - Silicon Switching Diode (Infineon Technologies AG)
BAW56 - SMD Small Signal Diodes (Diotec)

Other Datasheets by Fairchild

BAW74 - Small Signal Diode
BAW75 - High Speed Computer Diodes
BAW76 - High Speed Computer Diodes

Full PDF Text Transcription

Click to expand full text

BAW56 BAW56 3 2 1 SOT-23 Small Signal Diode 3 A1 12 Connection Diagram 3 12 Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value VRRM Maximum Repetitive Reverse Voltage 85 IF(AV) Average Rectified Forward Current 200 IFSM Non-repetitive Peak Forward Surge Current Pulse Width = 1.0 second Pulse Width = 1.0 microsecond 1.0 2.0 Tstg Storage Temperature Range -55 to +150 TJ Operating Junction Temperature *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C. 2) These are steady state limits. The factory should be consulted on applications involving pulsed or low duty cycle operations.
