KA7500B - SMPS Controller

Datasheet Summary

Description

The KA7500B is used for the control circuit of the PWM switching regulator.

The KA7500B consists of 5V reference voltage circuit, two error amplifiers, a flip flop, an output control circuit, a PWM comparator, a dead time comparator and an oscillator.

Features

  • Internal Regulator Provides a Stable 5V Reference Supply Trimmed to 5%.
  • Uncommitted Output TR for 200mA Sink or Source Current.
  • Output Control For Push-Pull or Single Ended Operation.
  • Variable Duty Cycle By Dead Time Control (Pin 4) Complete PWM Control Circuit.
  • On-Chip Oscillator With Master or Slave Operation.
  • Internal Circuit Prohibits Double Pulse at Either Output.

📥 Download Datasheet

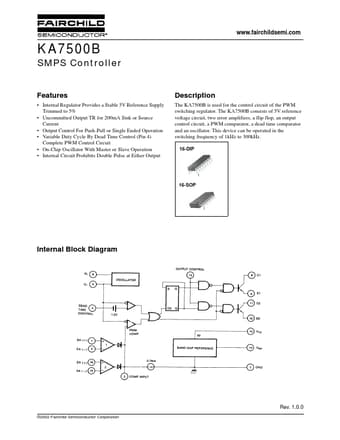

Datasheet preview – KA7500B

Datasheet Details

Part number KA7500B
Manufacturer Fairchild
File Size 59.52 KB
Description SMPS Controller
Datasheet download datasheet KA7500B Datasheet
Additional preview pages of the KA7500B datasheet.

📁 Similar Datasheet

  • KA7500B - VOLTAGE-MODE PWM CONTROLLER (Samsung)
  • KA7500 - single monolithic chip (HUAFUQIN)
  • KA7500 - Switching - type pulse width control circuit (H&M Semiconductor)
  • KA7500 - single monolithic chip (Estek Electronics)
  • KA7521 - ELECTRONIC BALLAST CONTROLLER (Fairchild Semiconductor)
  • KA7522 - DIMMING BALLAST CONTROLLER (Fairchild Semiconductor)
  • KA7522D - DIMMING BALLAST CONTROLLER (Fairchild Semiconductor)
  • KA7524 - POWER FACTOR CONTROLLER (Unisonic Technologies)
  • KA7524 - POWER FACTOR CONTROLLER (Contek)
  • KA7531 - BALLAST CONTROLLER (Samsung semiconductor)
Other Datasheets by Fairchild

Full PDF Text Transcription

Click to expand full text
www.fairchildsemi.com KA7500B SMPS Controller Features • Internal Regulator Provides a Stable 5V Reference Supply Trimmed to 5% • Uncommitted Output TR for 200mA Sink or Source Current • Output Control For Push-Pull or Single Ended Operation • Variable Duty Cycle By Dead Time Control (Pin 4) Complete PWM Control Circuit • On-Chip Oscillator With Master or Slave Operation • Internal Circuit Prohibits Double Pulse at Either Output Description The KA7500B is used for the control circuit of the PWM switching regulator. The KA7500B consists of 5V reference voltage circuit, two error amplifiers, a flip flop, an output control circuit, a PWM comparator, a dead time comparator and an oscillator. This device can be operated in the switching frequency of 1kHz to 300kHz.
