KA7541 - Simple Ballast Controller

Datasheet Summary

Description

The KA7541 provides simple and high performance electronic ballast control functions.

KA7541 is optimized for electronic ballast requiring a minimum board area, reduced component count and low power dissipation.

Features

  • Internal soft start Flexible soft start frequency No lamp protection Trimmed 1.5% internal bandgap reference Under voltage lock out with 1.8V of hysteresis Totem pole output with high state clamp Low start up and operating current.

📥 Download Datasheet

Datasheet preview – KA7541

Datasheet Details

Part number KA7541
Manufacturer Fairchild
File Size 95.05 KB
Description Simple Ballast Controller
Datasheet download datasheet KA7541 Datasheet
Additional preview pages of the KA7541 datasheet.

📁 Similar Datasheet

  • KA7540 - Simple Dimming Ballast Control IC (Samsung)
  • KA7540D - Simple Dimming Ballast Control IC (Samsung)
  • KA7500 - single monolithic chip (HUAFUQIN)
  • KA7500 - Switching - type pulse width control circuit (H&M Semiconductor)
  • KA7500 - single monolithic chip (Estek Electronics)
  • KA7500B - VOLTAGE-MODE PWM CONTROLLER (Samsung)
  • KA7521 - ELECTRONIC BALLAST CONTROLLER (Fairchild Semiconductor)
  • KA7522 - DIMMING BALLAST CONTROLLER (Fairchild Semiconductor)
  • KA7522D - DIMMING BALLAST CONTROLLER (Fairchild Semiconductor)
  • KA7524 - POWER FACTOR CONTROLLER (Unisonic Technologies)
Other Datasheets by Fairchild

Full PDF Text Transcription

Click to expand full text

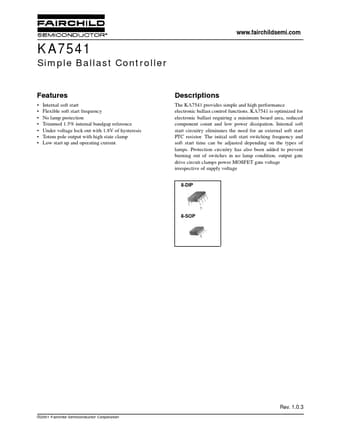

www.fairchildsemi.com KA7541 Simple Ballast Controller Features • • • • • • • Internal soft start Flexible soft start frequency No lamp protection Trimmed 1.5% internal bandgap reference Under voltage lock out with 1.8V of hysteresis Totem pole output with high state clamp Low start up and operating current Descriptions The KA7541 provides simple and high performance electronic ballast control functions. KA7541 is optimized for electronic ballast requiring a minimum board area, reduced component count and low power dissipation. Internal soft start circuitry eliminates the need for an external soft start PTC resistor. The initial soft start switching frequency and soft start time can be adjusted depending on the types of lamps.
