KA7631 - Fixed Multi-Output Regulator

Name: KA7631
SKU: KA7631-389955

Fairchild

📥 Download Datasheet

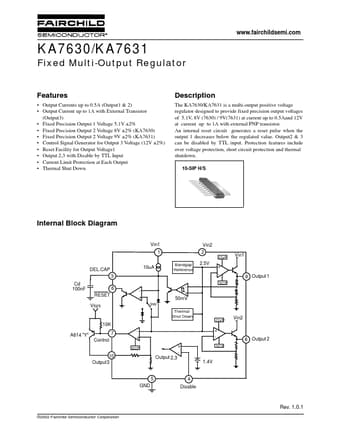

KA7631 Datasheet Preview — Preview of KA7631 PDF

Datasheet Details

Part number	KA7631
Manufacturer	Fairchild
File Size	71.33 KB
Description	Fixed Multi-Output Regulator
Datasheet	KA7631_FairchildSemiconductor.pdf

KA7631 Product details

Description

The KA7630/KA7631 is a multi-output positive voltage regulator designed to provide fixed precision output voltages of 5.1V, 8V (7630) / 9V(7631) at current up to 0.5Aand 12V at current up to 1A with external PNP transistor.

Features

Output Currents up to 0.5A (Output1 & 2).
Output Current up to 1A with External Transistor (Output3).
Fixed Precision Output 1 Voltage 5.1V ±2%.
Fixed Precision Output 2 Voltage 8V ±2% (KA7630).
Fixed Precision Output 2 Voltage 9V ±2% (KA7631).
Control Signal Generator for Output 3 Voltage (12V ±2%).
Reset Facility for Output Voltage1.
Output 2,3 with Disable by TTL Input.
Current Limit Protection at Each Output.
