KA78M10R

3-terminal 0.5A positive voltage regulator

KA78M10R Datasheet (81.42 KB)

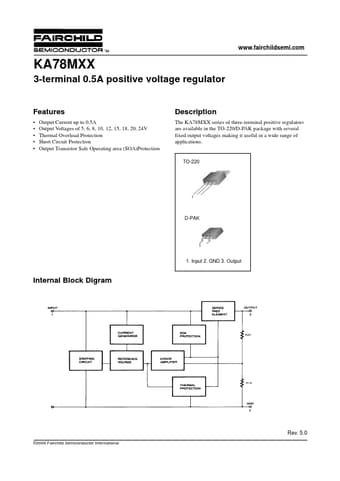

Preview of KA78M10R PDF

Datasheet Details

Part number:

KA78M10R

Manufacturer:

Fairchild

File Size:

81.42 KB

Description:

3-terminal 0.5a positive voltage regulator.

KA78M10R Features

* Output Current up to 0.5A Output Voltages of 5, 6, 8, 10, 12, 15, 18, 20, 24V Thermal Overload Protection Short Circuit Protection Output Transistor Safe Operating area (SOA)Protection Description The KA78MXX series of three-terminal positive regula

KA78M10R General Description

The KA78MXX series of three-terminal positive regulators are available in the TO-220/D-PAK package with several fixed output voltages making it useful in a wide range of applications. TO-220 1 D-PAK 1 1. Input 2. GND 3. Output Internal Block Digram Rev. 5.0 ©2000 Fairchild Semiconductor Inter.
