MC7812A

3-Terminal 1A Positive Voltage Regulator

MC7812A Features

* Output Current up to 1A Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V Thermal Overload Protection Short Circuit Protection Output Transistor Safe Operating Area Protection Description The MC78XX/LM78XX/MC78XXA series of three terminal positive

MC7812A General Description

The MC78XX/LM78XX/MC78XXA series of three terminal positive regulators are available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protecti.

MC7812A Datasheet (225.42 KB)

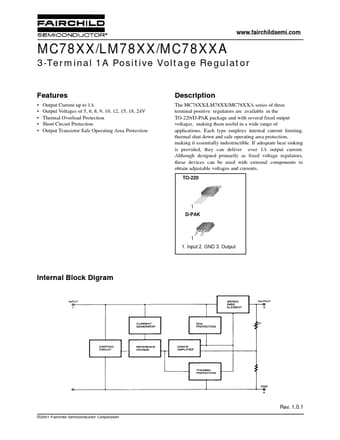

Preview of MC7812A PDF

Datasheet Details

Part number:

MC7812A

Manufacturer:

Fairchild

File Size:

225.42 KB

Description:

3-terminal 1a positive voltage regulator.
