MC78L05AA Datasheet - Fairchild

MC78L05AA - 3-Terminal 0.1A Positive Voltage Regulator

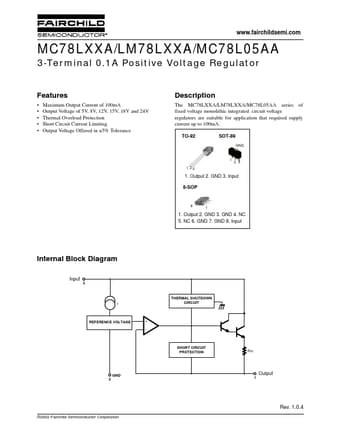

The MC78LXXA/LM78LXXA/MC78L05AA series of fixed voltage monolithic integrated circuit voltage regulators are suitable for application that required supply current up to 100mA.

TO-92 SOT-89 GND 1 1 23 2 3 1.

Output 2.

GND 3.

Input 8-SOP 8 1 1.

Output 2.

GND 3.

GND 4.

NC 5.

NC 6.

GND 7.

GND 8.
