MMSD3070 Datasheet - Fairchild

MMSD3070 Small Signal Diode

MMSD3070 MMSD3070 Top Marking: 5H SOD123 SOD123 BAND DENOTES CATHODE. Color Band Denotes Cathode Top Marking: 33 Small Signal Diode Absolute Maximum Ratings Symbol VRRM IF(AV) IFSM TA = 25°C unless otherwise noted Parameter Maximum Repetitive Reverse Voltage Average Rectified Forward Current Non-repetitive Peak Forward Surge Current Pulse Width = 1.0 second Pulse Width = 1.0 microsecond Storage Temperature Range Operating Junction Temperature Value 200 200 1.0 2.0 -55 to +150 150 Unit.

MMSD3070 Datasheet (76.32 KB)

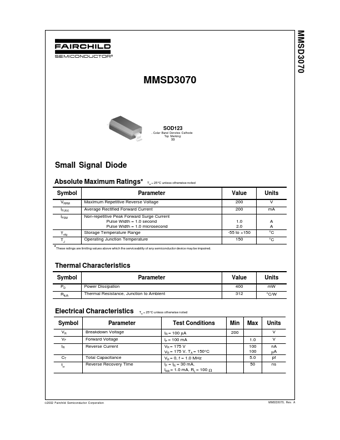

MMSD3070 Datasheet Preview — Preview of MMSD3070 PDF

Datasheet Details

Part number:

MMSD3070

Manufacturer:

Fairchild

File Size:

76.32 KB

Description:

Small signal diode.
