NC7SVU04

ULP-A Unbuffered Inverter

NC7SVU04 Features

* s 0.9V to 3.6V VCC supply operation s 3.6V overvoltage tolerant I/O’s at VCC from 0.9V to 3.6V s Extremely High Speed tPD 1.5 ns typ for 2.7V to 3.6V VCC 1.8 ns typ for 2.3V to 2.7V VCC 1.9 ns typ for 1.65V to 1.95V VCC 3.2 ns typ for 1.4V to 1.6V VCC 5.9 ns typ for 1.1V to 1.3V VCC 12.0 ns typ for

NC7SVU04 General Description

The NC7SVU04 is a single unbuffered inverter from Fairchild’s Ultra Low Power-A (ULP-A) series of TinyLogic. ULP-A is ideal for applications that require extreme high speed, high drive and low power. This product is designed for a wide low voltage operating range (0.9V to 3.6V VCC) and applications.

NC7SVU04 Datasheet (320.04 KB)

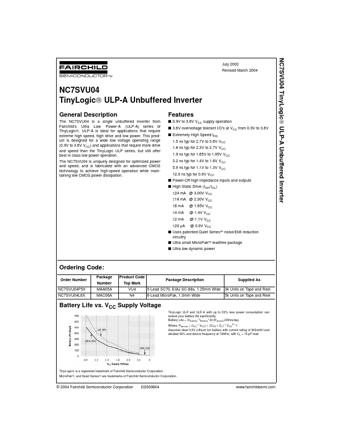

Preview of NC7SVU04 PDF

Datasheet Details

Part number:

NC7SVU04

Manufacturer:

Fairchild

File Size:

320.04 KB

Description:

Ulp-a unbuffered inverter.
