NC7WZ04

TinyLogic UHS Dual Inverter

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi NC7WZ04L6X IC INVERTER 2CH 2-INP 6MICROPAK DigiKey 15000 50000 units
$0.1

NC7WZ04 Datasheet (96.08 KB)

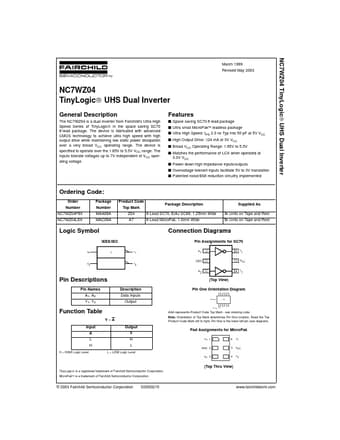

Preview of NC7WZ04 PDF

Datasheet Details

Part number:

NC7WZ04

Manufacturer:

Fairchild

File Size:

96.08 KB

Description:

Tinylogic uhs dual inverter.

NC7WZ04 Features

* s Space saving SC70 6-lead package s Ultra small MicroPak leadless package s Ultra High Speed: tPD 2.3 ns Typ into 50 pF at 5V VCC s High Output Drive: ±24 mA at 3V VCC s Broad VCC Operating Range; 1.65V to 5.5V s Matches the performance of LCX when operated at 3.3V VCC s Power down high impedance

NC7WZ04 General Description

The NC7WZ04 is a dual inverter from Fairchild’s Ultra High Speed Series of TinyLogic in the space saving SC70 6-lead package. The device is fabricated with advanced CMOS technology to achieve ultra high speed with high output drive while maintaining low static power dissipation over a very broad VC.
