A50QS Datasheet - Ferraz Shawmut

A50QS, SEMICONDUCTOR PROTECTION FUSES

AMP-TRAP® *Form 101 A50QS SEMICONDUCTOR PROTECTION FUSES A50QS Amp-trap® Form 101 fuses grew out of the need to improve the overall performan.

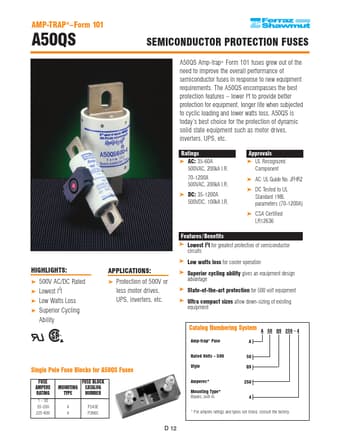

datasheet Preview Page 1 from Datasheet4u.com

A50QS_FerrazShawmut.pdf

A50QS Datasheet Preview — Preview of A50QS PDF

Datasheet Details

Part number:

A50QS

Manufacturer:

Ferraz Shawmut

File Size:

536.21 KB

Description:

SEMICONDUCTOR PROTECTION FUSES

Features

* lower I2t to provide better protection for equipment, longer life when subjected to cyclic loading and lower watts loss. A50QS is today’s best choice for the protection of dynamic solid state equipment such as motor drives, inverters, UPS, etc. Ratings ® AC: 35-60A 500VAC, 200kA I. R. 70-12

Applications

* ® Protection of 500V or less motor drives, UPS, inverters, etc. ® Superior cycling ability gives an equipment design advantage ® State-of-the-art protection for 500 volt equipment ® Ultra compact sizes allow down-sizing of existing equipment Catalog Numbering System Amp-trap® Fuse Rated Volts -
