FPM2750QFN, LOW NOISE HIGH LINEARITY BALANCED AMPLIFIER MODULE

FPM2750QFN LOW NOISE HIGH LINEARITY BALANCED AMPLIFIER MODULE .
The FPM2750QFN is a packaged pair of pseudomorphic High Electron Mobility Transistors (pHEMT) specifically optimised for balanced configuration syste.

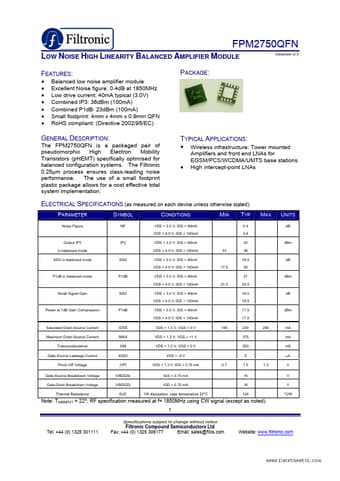

datasheet Preview Page 1 from Datasheet4u.com

FPM2750QFN_Filtronic.pdf

FPM2750QFN Datasheet Preview — Preview of FPM2750QFN PDF

Datasheet Details

Part number:

FPM2750QFN

Manufacturer:

Filtronic

File Size:

421.32 KB

Description:

LOW NOISE HIGH LINEARITY BALANCED AMPLIFIER MODULE

Features

* Balanced low noise amplifier module Excellent Noise figure: 0.4dB at 1850MHz Low drive current: 40mA typical (3.0V) Combined IP3: 36dBm (100mA) Combined P1dB: 23dBm (100mA) Small footprint: 4mm x 4mm x 0.9mm QFN RoHS compliant: (

Applications

* Wireless infrastructure: Tower mounted Amplifiers and front end LNAs for EGSM/PCS/WCDMA/UMTS base stations High intercept-point LNAs ELECTRICAL SPECIFICATIONS (as measured on each device unless otherwise stated): PARAMETER Noise Figure SYMBOL NF CONDITIONS VDS = 3.0 V; IDS =
