FTLX3813M341P - 10Gb/s DWDM XFP Optical Transceiver

This page provides the datasheet information for the FTLX3813M341P, a member of the FTLX3813Mxx 10Gb/s DWDM XFP Optical Transceiver family.

Description

Ref.

5.2 Power Supply Not required 3 LVTTL-I Mod-Desel Module De-select; When held low allows the module to respond to 2-wire serial interface commands 4 LVTTL-O Interrupt Interrupt (bar); Ind

Features

  • Supports 8.5Gb/s to 11.32Gb/s.
  • Hot-pluggable XFP footprint.
  • Temperature-stabilized DWDM EML transmitter.
  • RoHS-6 Compliant (lead-free).
  • 100GHz ITU Grid, C-Band.
  • Duplex LC connector.
  • Power dissipation.

📥 Download Datasheet

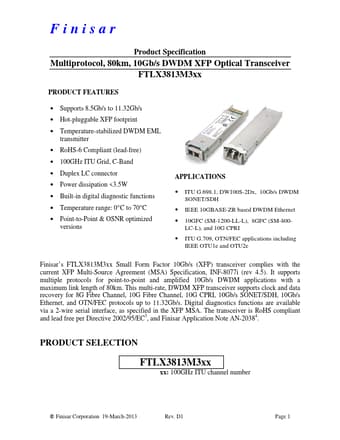

Datasheet preview – FTLX3813M341P

Datasheet Details

Part number FTLX3813M341P
Manufacturer Finisar Corporation
File Size 526.41 KB
Description 10Gb/s DWDM XFP Optical Transceiver
Datasheet download datasheet FTLX3813M341P Datasheet
Additional preview pages of the FTLX3813M341P datasheet.

📁 Similar Datasheet

Other Datasheets by Finisar Corporation

Full PDF Text Transcription

Click to expand full text
Finisar Product Specification Multiprotocol, 80km, 10Gb/s DWDM XFP Optical Transceiver FTLX3813M3xx PRODUCT FEATURES • Supports 8.5Gb/s to 11.32Gb/s • Hot-pluggable XFP footprint • Temperature-stabilized DWDM EML transmitter • RoHS-6 Compliant (lead-free) • 100GHz ITU Grid, C-Band • Duplex LC connector • Power dissipation <3.5W • Built-in digital diagnostic functions • Temperature range: 0°C to 70°C • Point-to-Point & OSNR optimized versions APPLICATIONS • ITU G.698.1, DW100S-2Dx, 10Gb/s DWDM SONET/SDH • IEEE 10GBASE-ZR based DWDM Ethernet • 10GFC (SM-1200-LL-L), 8GFC (SM-800LC-L), and 10G CPRI • ITU G.
