5.0SMCJ48AG, 5.0SMCJ11AG SMD Transient Voltage Suppressor

5.0SMCJ48AG Description

SMD Transient Voltage Suppressor 5.0SMCJ SERIES 5000W Surface Mount Transient Volatge Suppressors - 11.0V-170V .

5.0SMCJ48AG Features

* 3000W peak pulse power capability with a 10/1000 us waveform, repetition rate(duty cycle): 0.01%.
* Excellent clamping capability.
* Low incremental surge resistance.
* Fast response time from 0V to VBR, typically less than 1 ps for uni-directional & 5 ns for bi-dir

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 5.0SMCJ48AG, 5.0SMCJ11AG. Please refer to the document for exact specifications by model.

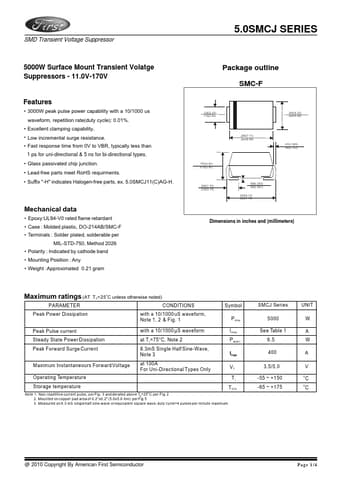

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
5.0SMCJ48AG, 5.0SMCJ11AG
Manufacturer
First Semiconductor
File Size
1.06 MB
Datasheet
5.0SMCJ11AG-FirstSemiconductor.pdf
Description
SMD Transient Voltage Suppressor
Note
This datasheet PDF includes multiple part numbers: 5.0SMCJ48AG, 5.0SMCJ11AG.
Please refer to the document for exact specifications by model.
