DF2005S Bridge Rectifier

DF2005S Description

SEMICONDUCTOR TECHNICAL DATA DF2005S ~ DF210S Bridge Rectifier * .

DF2005S Features

* Io 2.0A
* VRRM 50V~1000V
* Glass passivated chip
* Outline Dimensions and Mark

DF2005S Applications

* General purpose 1 phase Bridge rectifier applications
* Limiting Values（Absolute Maximum Rating） Item Symbol Unit Repetitive Peak Reverse Voltage VRRM V Conditions DF2 005S 01S 02S 04S 06S 08S 10S 50 100 200 400 600 800 1000 Average Rectified Output Current Surge(Nonrepetitive)Forw

📥 Download Datasheet

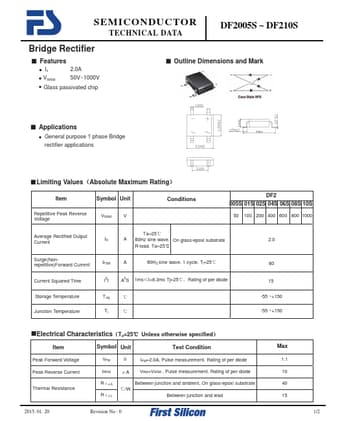

Preview of DF2005S PDF
datasheet Preview Page 2

Datasheet Details

Part number
DF2005S
Manufacturer
First Silicon
File Size
471.00 KB
Datasheet
DF2005S-FirstSilicon.pdf
Description
Bridge Rectifier
