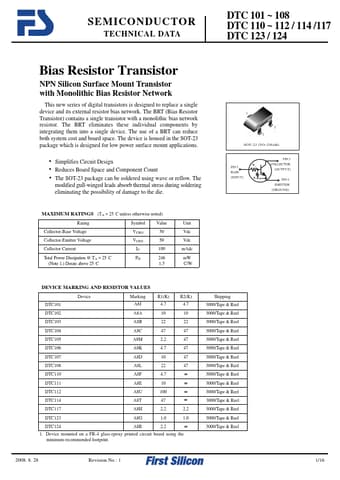

SEMICONDUCTOR TECHNICAL DATA DTC 101 ~ 108 DTC 110 ~ 112 / 114 /117 DTC 123 / 124 Bias Resistor Transistor NPN Silicon Surface Mount Transistor with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network resistor. The BRT eliminates these individual components by integrating them into a single device. The .

DTC123 Features

* IC/IB = 10 hFE, DC CURRENT GAIN 75 C 100 TA =

* 25 C 25 C 1000 0.1 75 C 25 C 0.01 TA =

* 25 C 10 VCE = 10 V 0.001 2 7 12 17 22 27 32 1 1 10 IC, COLLECTOR CURRENT (mA) 100 IC, COLLECTOR CURRENT (mA) Figure 27. VCE(sat) vs. IC 4 IC, COLLECTOR CURRENT (mA) 3.5 Cob, CAPACITANCE (p

DTC123 Datasheet (275.71 KB)

Preview of DTC123 PDF
DTC123 Datasheet Preview Page 2 DTC123 Datasheet Preview Page 3

Datasheet Details

Part number:

DTC123

Manufacturer:

First Silicon

File Size:

275.71 KB

Description:

Bias resistor transistor.
