DTC303, DTC301 Datasheet - First Silicon

DTC303 Bias Resistor Transistors

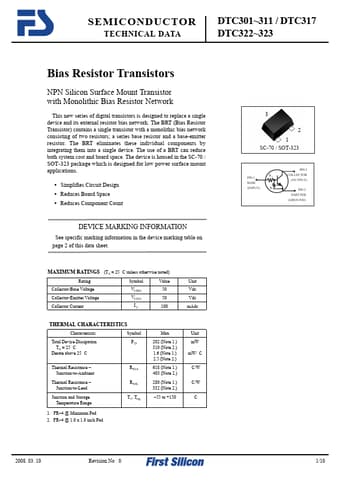

SEMICONDUCTOR TECHNICAL DATA DTC301~311 / DTC317 DTC322~323 Bias Resistor Transistors NPN Silicon Surface Mount Transistor with Monolithic Bias Resistor Network This new series of digital transistors is designed to replace a single device and its external resistor bias network. The BRT (Bias Resistor Transistor) contains a single transistor with a monolithic bias network consisting of two resistors; a series base resistor and a base-emitter resistor. The BRT eliminates these individual compone.

DTC301-FirstSilicon.pdf

This datasheet PDF includes multiple part numbers: DTC303, DTC301. Please refer to the document for exact specifications by model.
DTC303 Datasheet Preview Page 2 DTC303 Datasheet Preview Page 3

Datasheet Details

Part number:

DTC303, DTC301

Manufacturer:

First Silicon

File Size:

568.80 KB

Description:

Bias resistor transistors.

Note:

This datasheet PDF includes multiple part numbers: DTC303, DTC301.
Please refer to the document for exact specifications by model.
