FAC2576

3A 52Khz PWM Buck DC/DC Converter

FAC2576 Features

* include a two stage frequency reducing current limit for the output switch and an over temperature shutdown for complete protection under fault conditions. The FAC2576 is available in TO-220B-5L TO220-5L and TO-263-5L packages. Features

FAC2576 General Description

The FAC2576 is a series of easy to use fixed and adjustable step-down (buck) switch-mode voltage regulators. These devices are available in fixed output voltage of 3.3V, 5V, and an adjustable output version. Both versions are capable of driving a 3A load with excellent line and load regulation. Requ.

FAC2576 Datasheet (613.99 KB)

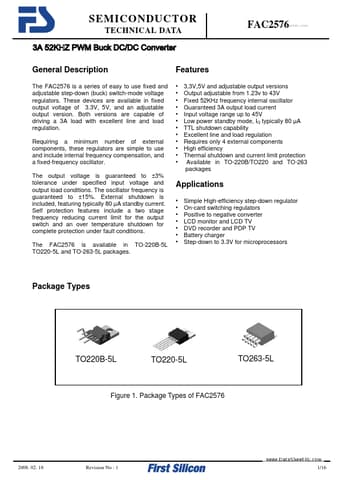

Preview of FAC2576 PDF

Datasheet Details

Part number:

FAC2576

Manufacturer:

First Silicon

File Size:

613.99 KB

Description:

3a 52khz pwm buck dc/dc converter.
