LB2S - SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

First Silicon

LB2S Description

SEMICONDUCTOR TECHNICAL DATA LB2S ~ LB10S Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers Reverse Voltage 200 to 1000 Volts .

LB2S Features

* Low Profile: Typical height of 1.4mm Ideal for automated placement High surge current capability Solder Dip 260 40seconds Mechanical Data Case:SOPA-4 Epoxy meets UL-94V-0 Flammability rating Terminals:Matte tin plated ldads, solderable p J-STD-002B and JESD22-B102D Polarity:As markde on body Maxim

📥 Download Datasheet

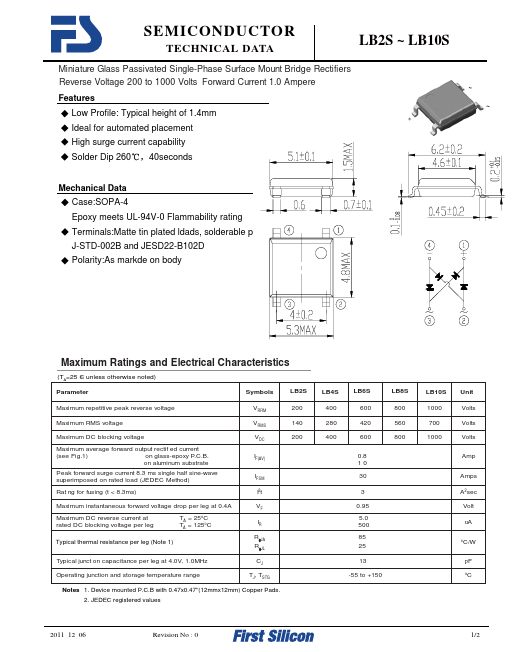

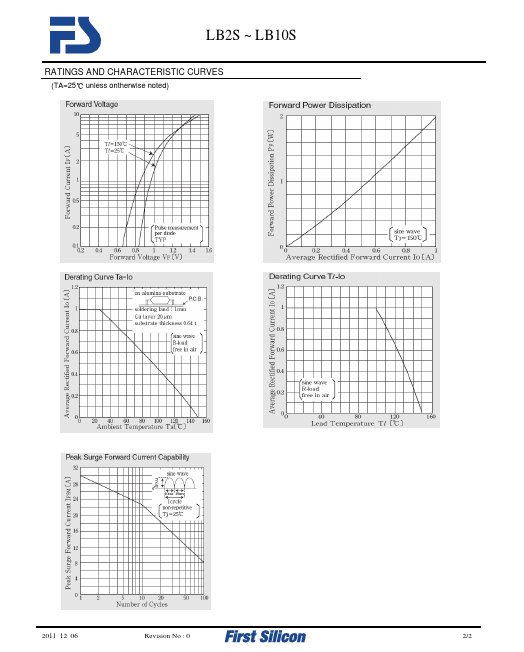

LB2S Datasheet Preview — Preview of LB2S PDF

Datasheet Details

Part number: LB2S
Manufacturer: First Silicon
File Size: 146.66 KB
Datasheet: LB2S-FirstSilicon.pdf
Description: SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER
