LB8S SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

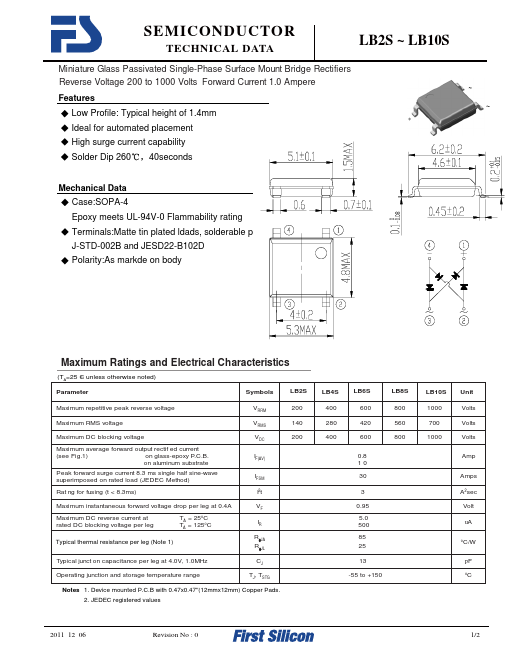

📥 Download Datasheet  Datasheet Preview Page 1

Description

SEMICONDUCTOR TECHNICAL DATA LB2S ~ LB10S Miniature Glass Passivated Single-Phase Surface Mount Bridge Rectifiers Reverse Voltage 200 to 1000 Volts .

📥 Download Datasheet

Preview of LB8S PDF
datasheet Preview Page 2

Datasheet Specifications

Part number
LB8S
Manufacturer
First Silicon
File Size
143.32 KB
Datasheet
LB8S-FirstSilicon.pdf
Description
SURFACE MOUNT GLASS PASSIVATED BRIDGE RECTIFIER

Features

* Low Profile: Typical height of 1.4mm Ideal for automated placement High surge current capability Solder Dip 260 40seconds Mechanical Data Case:SOPA-4 Epoxy meets UL-94V-0 Flammability rating Terminals:Matte tin plated ldads, solderable p J-STD-002B and JESD22-B102D Polarity:As markde on body Maxim
