MUR1060F, MUR1060 Glass passivated super fast rectifier

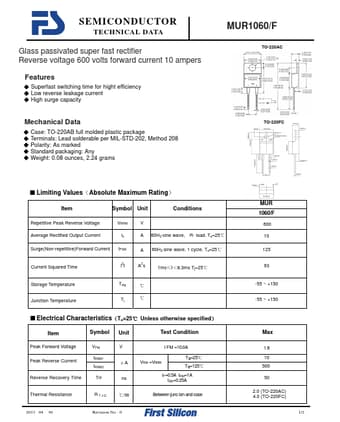

📥 Download Datasheet Datasheet Preview Page 1

Description

SEMICONDUCTOR TECHNICAL DATA Glass passivated super fast rectifier Reverse voltage 600 volts forward current 10 ampers .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MUR1060F, MUR1060. Please refer to the document for exact specifications by model.
datasheet Preview Page 2

Datasheet Specifications

Part number
MUR1060F, MUR1060
Manufacturer
First Silicon
File Size
127.75 KB
Datasheet
MUR1060-FirstSilicon.pdf
Description
Glass passivated super fast rectifier
Note
This datasheet PDF includes multiple part numbers: MUR1060F, MUR1060.
Please refer to the document for exact specifications by model.

Features

* Superfast switching time for hight efficiency Low reverse leakage current High surge capacity Mechanical Data Case: TO-220AB full molded plastic package Terminals: Lead solderable per MIL-STD-202, Method 208 Polarity: As marked Standard packaging: Any Weight: 0.08 ounces, 2.24 grams MUR1060/F TO-22
