FP6601 - USB Dedicated Charging Port Controller

FP6601 Description

fitipower integrated technology lnc.Preliminary FP6601 USB Dedicated Charging Port Controller with QC 2.0 Fast Charging Function .
The FP6601 is a fast charge protocol controller and follows Quick Charge 2.

FP6601 Features

* Input Voltage Range from 4V to 6V.
* Fully Supports Quick Charge 2.0 specification: Class A: 5V/9V/12V Output Voltage.
* Supports USB DCP Shorting D+ Line to D- Line per USB Battery Charging Specification, Revision 1.2.
* Meets Chinese Telecommunication Industrial Standard YD/T 159

FP6601 Applications

* Wall-Adapter / Power Plugs, Outlets
* Mobile / Tablet Power Bank
* Car Charger
* USB Power Output Ports Pin Assignments S6 Package B (SOT-23-6) D- VDD VSEN2 654 (Marking) 123 D+ GND VSEN1 Figure 1. Pin Assignment of FP6601 FR6601- Preliminary 0.3-MAR-2015 1 fitipower integrate

📥 Download Datasheet

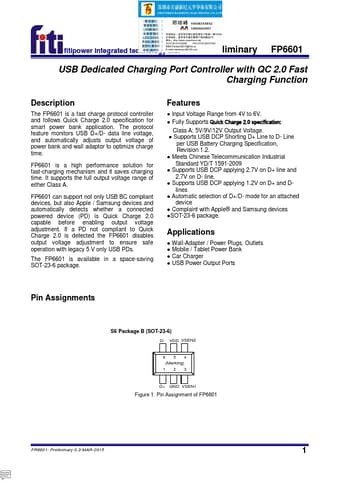

Preview of FP6601 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
FP6601
Manufacturer
Fitipower
File Size
816.04 KB
Datasheet
FP6601-Fitipower.pdf
Description
USB Dedicated Charging Port Controller
