C204A-BW-LW65 - LCD

C204A-BW-LW65 Description

Ph.480-503-4295 | NOPP@FocusLCD.com TFT | CHARACTER | UWVD | FSC | SEGMENT | CUSTOM | REPLACEMENT Character LCD Module Part Number C204A-BW-LW65 Ove.
This is a STN (Super-Twisted Nematic) Blue Negative Character LCD (Liquid Crystal Display) that can display twenty characters on four lines (20x4).

C204A-BW-LW65 Features

* Character Format: 5x7 Dots with Cursor Display Format: 20 Characters x 4 Lines Interface: Parallel Controller: ST7066U (or equivalent) RoHS Compliant General Information LCD Type Viewing Direction Rear Polarizer Backlight Type Backlight Color Temperature Range Touch Screen Controller IC Interface

📥 Download Datasheet

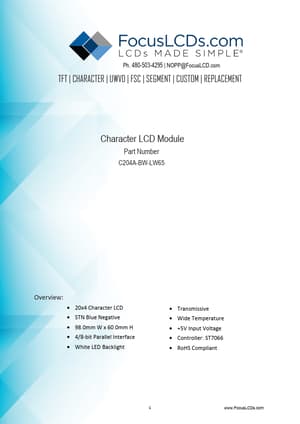

Preview of C204A-BW-LW65 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
C204A-BW-LW65
Manufacturer
FocusLCDs
File Size
2.37 MB
Datasheet
C204A-BW-LW65-FocusLCDs.pdf
Description
LCD
