Datasheet Details
Part number:
HFM305-Q1, HFM301-Q1
Manufacturer:
Formosa MS
File Size:
58.96 KB
Description:
Chip high efficiency rectifiers.
Note:
This datasheet PDF includes multiple part numbers: HFM305-Q1, HFM301-Q1.
Please refer to the document for exact specifications by model.

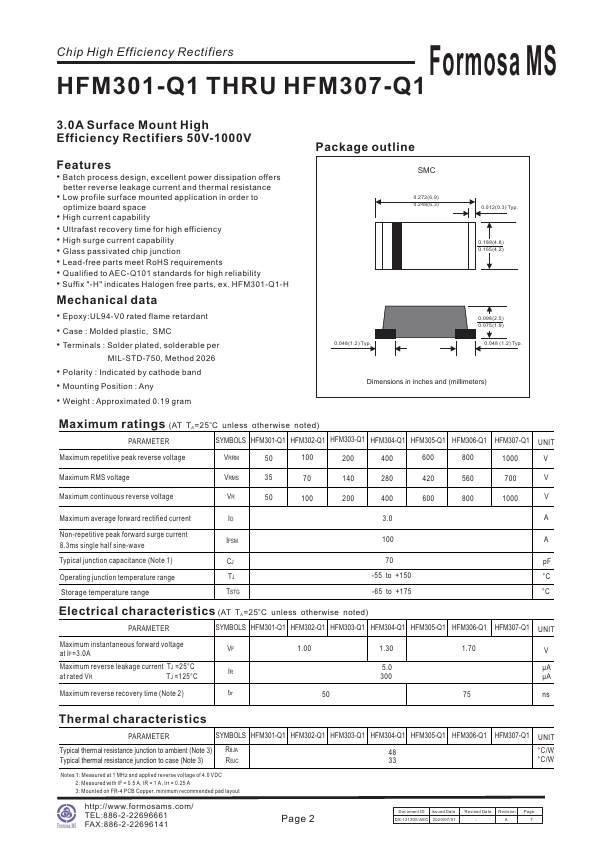

HFM305-Q1, HFM301-Q1, Chip High Efficiency Rectifiers
HFM305-Q1 Features

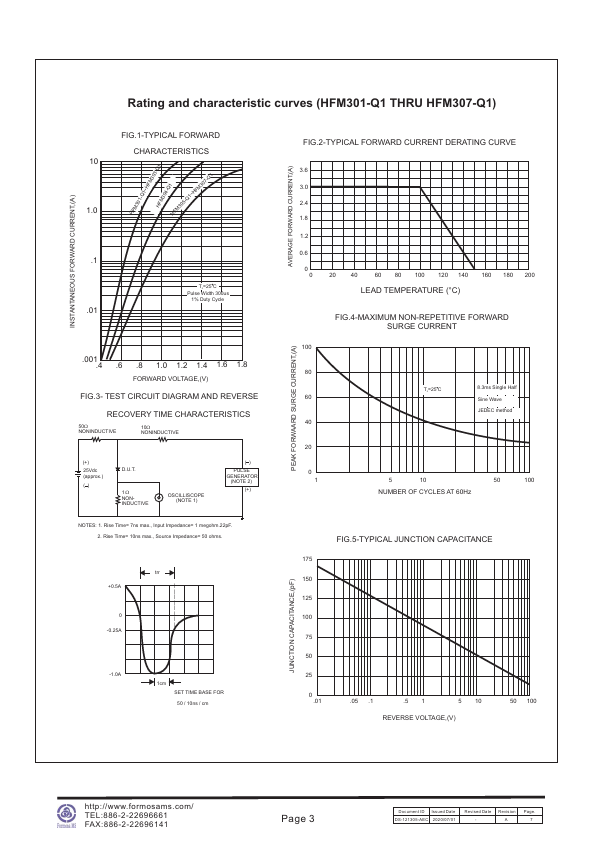

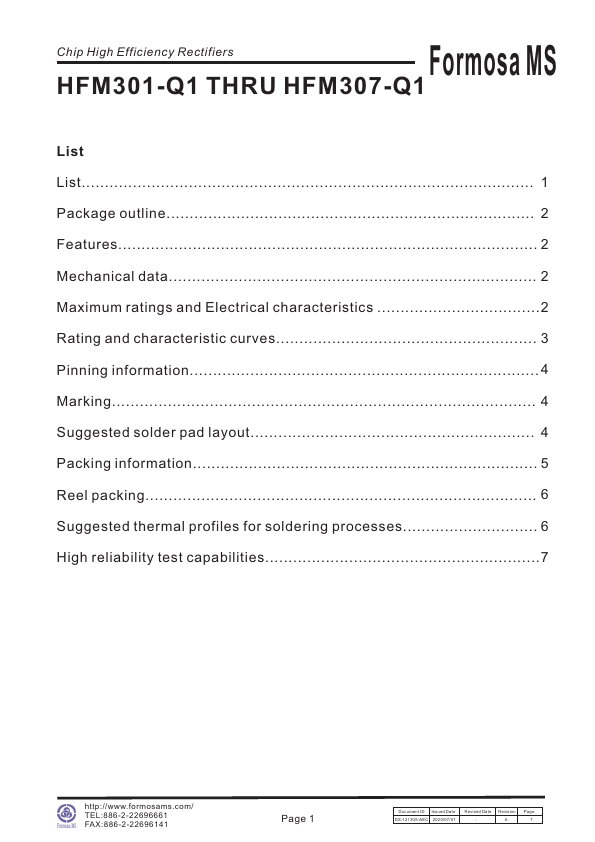

* 2 Mechanical data 2 Maximum ratings and Electrical characteristics 2 Rating and characteristic curves 3 Pinning information4 Marking 4 Suggested solder pad layout 4 Packing information 5 Reel packing 6 Suggested thermal profiles for soldering processes 6 High reliability test capabilities7 http://w
