ZTB-B - Low Frequecy (KHz) Ceramic Resonators

This page provides the datasheet information for the ZTB-B, a member of the ZTB-A Low Frequecy (KHz) Ceramic Resonators family.

Datasheet Summary

Features

  • Small and Light High Durability Good Temperature Stability Low Cost.

📥 Download Datasheet

Datasheet preview – ZTB-B

Datasheet Details

Part number ZTB-B
Manufacturer Fortiming
File Size 193.53 KB
Description Low Frequecy (KHz) Ceramic Resonators
Datasheet download datasheet ZTB-B Datasheet
Additional preview pages of the ZTB-B datasheet.

📁 Similar Datasheet

  • ZTB - ZTB Series KHz-Band Ceramic Resonator (Vanlong Technology)
  • ZTB1.23MJ - CERAMIC RESONATOR (ECS)
  • ZTB1000 - Surface Mountable Resonators (Token)
  • ZTB1000J - Ceramic Resonators (Token)
  • ZTB1000J - Through Hole Ceramic Resonators (US Electronics)
  • ZTB1000JH - High Temperature Through Hole Ceramic Resonators (US Electronics)
  • ZTB1000MJ - CERAMIC RESONATOR (ECS)
  • ZTB1250E - Ceramic Resonators (SJK)
  • ZTB1250J - Ceramic Resonators (Token)
  • ZTB1250Y - Ceramic Resonators (SJK)
Other Datasheets by Fortiming
  • ZTB-A - Low Frequecy (KHz) Ceramic Resonators
  • ZTB-C - Low Frequecy (KHz) Ceramic Resonators
  • ZTB-D - Low Frequecy (KHz) Ceramic Resonators
  • ZTB-E - Low Frequecy (KHz) Ceramic Resonators
  • ZTB-F - Low Frequecy (KHz) Ceramic Resonators
  • ZTB-G - Low Frequecy (KHz) Ceramic Resonators

Full PDF Text Transcription

Click to expand full text

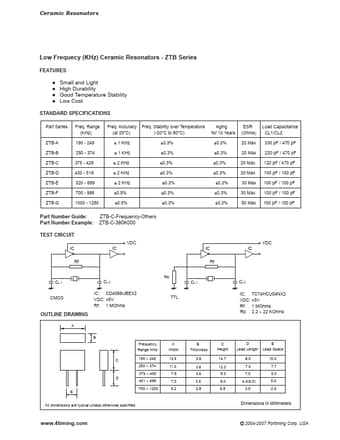

Ceramic Resonators Low Frequecy (KHz) Ceramic Resonators - ZTB Series FEATURES Small and Light High Durability Good Temperature Stability Low Cost STANDARD SPECIFICATIONS Part Series ZTB-A ZTB-B ZTB-C ZTB-D ZTB-E ZTB-F ZTB-G Freq. Range (KHz) 190 - 249 250 - 374 375 - 429 430 - 519 520 - 699 700 - 999 1000 - 1250 Freq. Accuracy Freq. Stability over Temperature (at 25°C) (-20°C to 80°C) ± 1 KHz ±0.3% ± 1 KHz ±0.3% ± 2 KHz ±0.3% ± 2 KHz ±0.3% ± 2 KHz ±0.3% ±0.5% ±0.3% ±0.5% ±0.3% Aging ESR Load Capacitance for 10 Years (Ohms) CL1/CL2 ±0.3% 20 Max 330 pF / 470 pF ±0.3% 20 Max 220 pF / 470 pF ±0.3% 20 Max 120 pF / 470 pF ±0.3% 20 Max 100 pF / 100 pF ±0.3% 30 Max 100 pF / 100 pF ±0.3% 30 Max 100 pF / 100 pF ±0.
