FT3103

The FT3103 is Three Phase Sensorless BLDC Motor Controller designed by Fortior.

Product Overview

Part number	FT3103
Manufacturer	Fortior
File Size	333.61 KB
Description	Three Phase Sensorless BLDC Motor Controller
Datasheet	FT3103-Fortior.pdf

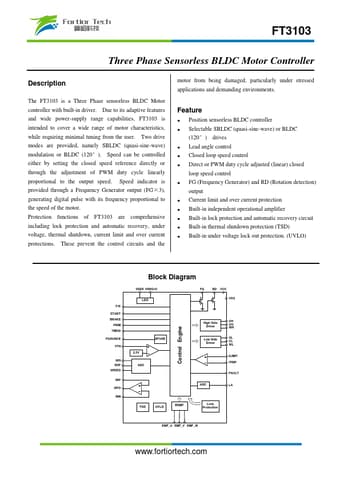

Additional preview pages of the FT3103 datasheet.

The FT3103 is a Three Phase sensorless BLDC Motor controller with built-in driver.

and wide power-supply range capabilities, FT3103 is intended to cover a wide range of motor characteristics, while requiring minimal tuning from the user. Two drive modes are provided, namely SBLDC (quasi-sine-wave) modulation or BLDC (120°). Speed can be controlled either by setting the closed speed reference directly or through the adjustment of PWM duty cycle linearly proportional to the output speed. Speed indicator is provided through a Frequency Generator output (FG×3), generating digital.
